PET Strap Making Machine
Created with Pixso.

Pet Plastic Strapping Pet Strapping Machine Polyerster Strapping Band Making Machine CE ISO Pet Strap Line

Pet Plastic Strapping Pet Strapping Machine Polyerster Strapping Band Making Machine CE ISO Pet Strap Line

Brand Name: YXZX
Model Number: YXZXPET-90A; YXZXPET-100A; YXZXPET-125A; YXZXPET-135A; YXZXPET-150A
MOQ: 1Set
Price: 101449.8-289856
Payment Terms: T/T,L/C
Supply Ability: 80Set/Year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO 9001:2015 And CE
Color:
As Shown In The Picture Or Customizable
Screw Diameter (mm):
90, 100, 125, 135, 150
Screw Material:
38CrMoALA
Equipment Capacity (KG/H):
100-210, 130-300, 200-500, 250-650, 300-800 Or Customizable
Equipment Power Consumption (KW/H):
80-100, 120-130, 130-140, 170-180, 200-220
Applicable Materials:
PET Granules, PET Bottle Flakes, Recycled Strapping Scraps, Material Made From Clothing.
Finished Product Specifications:
Width 9–32 Mm, Thickness 0.4–1.4 Mm
Embossing Machine:
Optional Embossing Patterns
Optional Equipment:
Manual Strap Winder, Servo Strap Winder, Fully Automatic Strap Winder
Warranty:
1 YEAR
Nstallation Dimensions (L×W×H) (mm):
50000×1500×7000, 60000×2000×8000 And So On
Installation:
Video-guided Installation & On-site Installation Service
Weight:
About 20270KG
Screw Speed (rpm):
1000rpm
Screw L/D Ratio:
1:29
Packaging Details:
Large equipment wrapped with stretch film; Small accessories packed in wooden cases
Supply Ability:
80Set/Year
Product Description

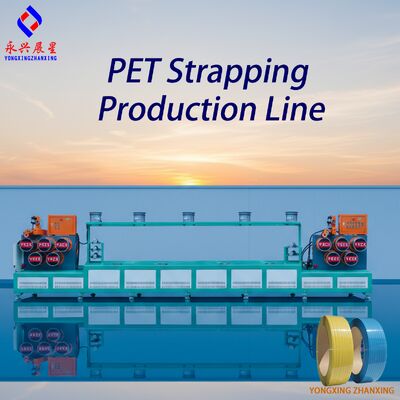

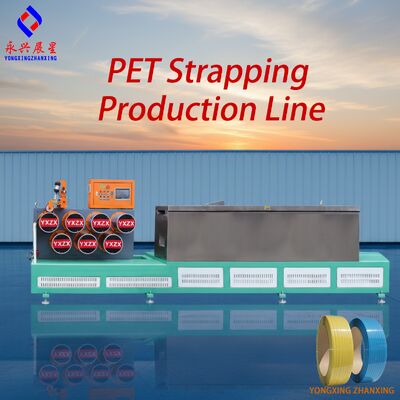

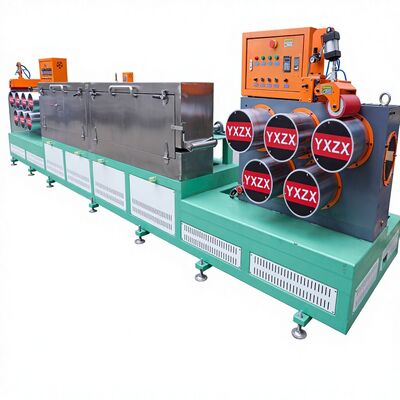

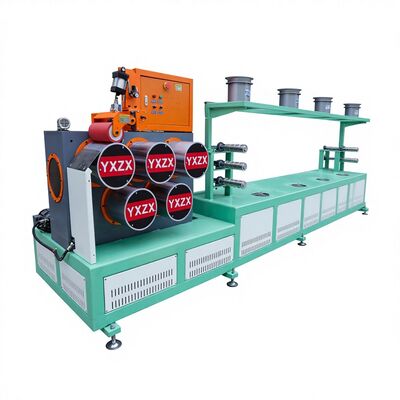

PET Plastic Strapping Machine & Polyester Strapping Band Production Line
Complete Production Line Overview

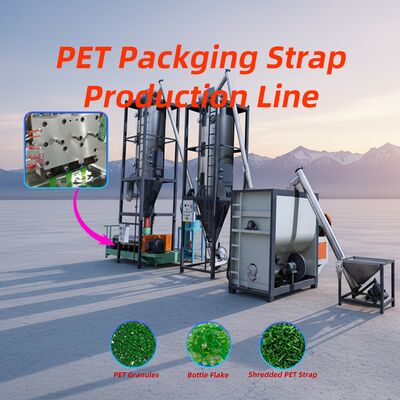

Packaging Machinery PET Plastic Strapping Machine with 9-32mm Width Plastic Extrusions. PET Strap Making Machine featuring a complete production line from pre-drying to winding with traction stretching and embossing steps for high-quality PET strap manufacturing.

Production Process
  • Pre-drying
  • Material Loading
  • Dehumidification
  • Crystallization
  • Extrusion
  • Primary Cooling
  • Traction ①
  • Stretching Ⅰ
  • Stretching Ⅱ
  • Embossing
  • Setting
  • Secondary Cooling
  • Traction ②
  • Winding
Product Gallery
Key Features
PET Packing Strap Extrusion Machine
PET Packing Strapping Band Making Machine

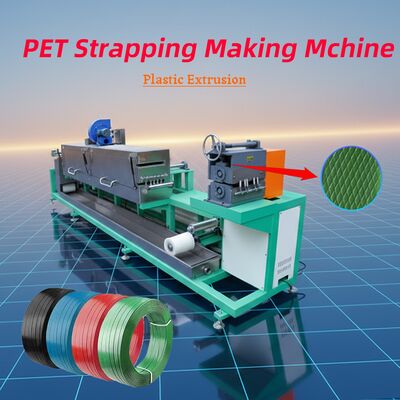

PET Plastic Extrusion
Fully Automatic Production Line
PET Production Line
100% Recycled Material Compatible
PET Packaging Straps Making Machine
