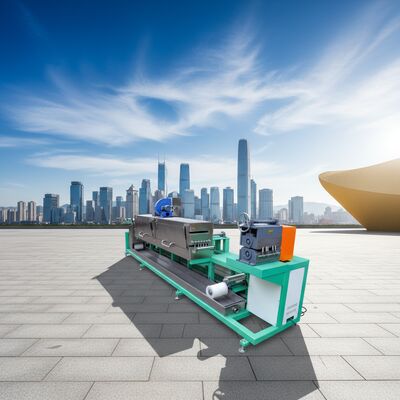

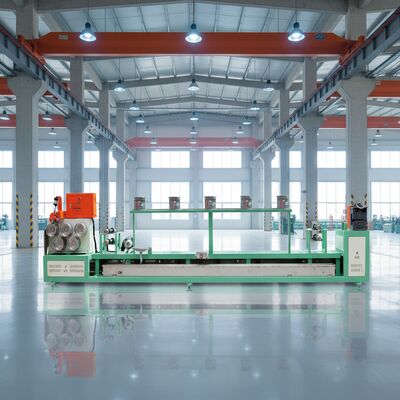

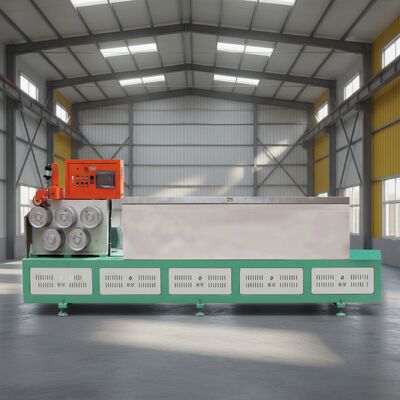

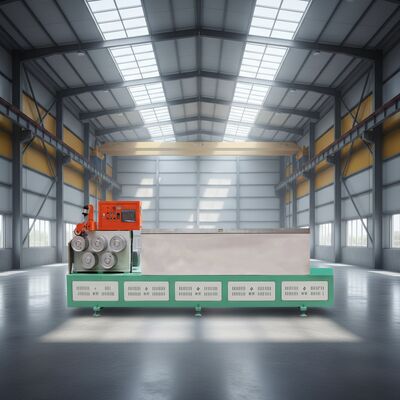

Single Screw Extruder Strong Tension Embossed Pet Band Strap Production Line

Single Screw Extruder Strong Tension Embossed Pet Band Strap Production Line

Brand Name:	YXZX
Model Number:	YXZXPET-90A; YXZXPET-100A; YXZXPET-125A; YXZXPET-135A; YXZXPET-150A
MOQ:	1Set
Price:	101449.8-289856
Payment Terms:	T/T,L/C
Supply Ability:	80Set/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO 9001:2015 And CE

Color:

As Shown In The Picture Or Customizable

Screw Diameter (mm):

90, 100, 125, 135, 150

Screw Material:

38CrMoALA

Equipment Capacity (KG/H):

100-210, 130-300, 200-500, 250-650, 300-800 Or Customizable

Equipment Power Consumption (KW/H):

80-100, 120-130, 130-140, 170-180, 200-220

Applicable Materials:

PET Granules, PET Bottle Flakes, Recycled Strapping Scraps, Material Made From Clothing.

Finished Product Specifications:

Width 9–32 Mm, Thickness 0.4–1.4 Mm

Embossing Machine:

Optional Embossing Patterns

Optional Equipment:

Manual Strap Winder, Servo Strap Winder, Fully Automatic Strap Winder

Warranty:

1 YEAR

Nstallation Dimensions (L×W×H) (mm):

50000×1500×7000, 60000×2000×8000 And So On

Installation:

Video-guided Installation & On-site Installation Service

Weight:

About 20270KG

Screw Speed (rpm):

1000rpm

Screw L/D Ratio:

1:29

Packaging Details:

Large equipment wrapped with stretch film; Small accessories packed in wooden cases

Supply Ability:

80Set/Year

Product Description

PET Strapping Production Process:

Pre-drying → Material Loading → Dehumidification → Crystallization → Extrusion → Primary Cooling → Traction ① → Stretching Ⅰ → Stretching Ⅱ → Embossing → Setting → Secondary Cooling → Traction ② → Winding
