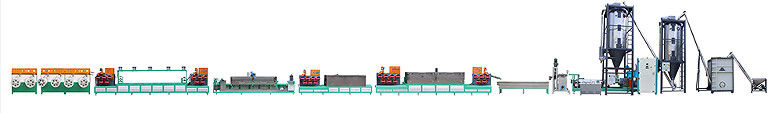

Automatic Carton Box PET Belt PET Strap Extrusion Machine 0.4mm-1.5mm

1 sets
MOQ
$106,000.00 - $121,000.00/set, negotiable
Price
Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm
Features Gallery Product Description Request A Quote
Features
Specifications
Screw Design: Single-screw
Showroom Location: Viet Nam, Philippines, India, Sri Lanka
Voltage: 380V 50HZ 3Phase(Customized)
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Printing Shops, Construction Works
Core Components: Motor, Screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: PET Strap Band Production Line
Port: Shekou/Yantian
Highlight:

Box PET Strap Extrusion Machine

,

Carton PET Strap Extrusion Machine

,

1.5mm Extrusion Production Line

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: YONGXINGZHANXING
Certification: ISO9001:2008
Payment & Shipping Terms
Packaging Details: Packaging Details: Before dilivery, our workers will be carefully pack the whole set machine to promise safely arriving to customer's workshop. Cling film packing/ Buble film packing.<br>Delivery Time: 50 days
Delivery Time: 45 work days
Supply Ability: 10 Set/Sets per Month
Product Description
Product Description

Automatic Carton Box Pet Belt Strapping Machine 3-In-1 Portable Pet Water Bottle Strap



Equipment List



Style No.:YXZXPET-100A

Suitable Material:100%PET bottle flak  ( Material size about10-16MM)

Strapping Pcs:3pcs

Strapping Size: Width/Thickness(mm)9-32/0.4-1.5

Including 6pcs moulds,2pcs strap output:

Production Capacity: 7200-9600 kg/24h

Power consumption: 130-140KW/H

No.

Content

Detailed Parameter

Reference Pictures

1



Pre-production warm-up part



One set of Lying-style raw material warm-up/drying machine (1.5Tons,Dongguan)

One set of auto raw material feeding machine (2.5M)





 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 0

2



Pre-production raw-material storage part



One set of 2 tons stand style raw-material storage machine(Dongguan)

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 1

3

One set of Extruder

 Solid heating device 8 zones,

1. Screw Material (CrMoAL):38

Barrel Internal Diameter (mm):100

2. Reductor : YXZX-225

3. Motor/Inverter(kw):37/37 (DG Global &SZ YWT)

4. Precise automatic feeder (100CC) to keep output stable.

5. Special chemical fiber net changer

6. Material drying container: 100KG

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 2

4

Dehumidifying dryer one set

1.    One set of PET crystallization machine ( capacity 1000kgs/set)

2.    Auto-feeder: corkscrew spin feeder ( 2sets, 4KW/Set)

3.    Pre-Dry and Dehumidifying dryer one set (Model: GSG-1000, Capacity 1000kgs, Gross power 75KW/H)

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 3

5

Stainless Steel cooling tank one set

Size(mm):3000×350×600

Size:SUS304; thickness:2.0T

Water lever adjustable

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 4

6

The first

Haul-off one set

5 roller size(mm):215×220

Material :Stainless steel hard abrasion

Move mode:6 strap double chains (grear speed reduction motor)

Inverter (KW):3.7

Speed(m/min):0-20

Speed Ratio:1:60

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 5

7

One set extend oven

Oven size(mm):4000×400×530

Material:SUS202,Thickness:1.5T

Heating method : Circulate wind(save energy) Fan(kw):0.75

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 6

8

The1st extension fitting one set

5 roller size(mm):215×220

Material :Stainless steel hard abrasion

Move mode: double chains (gear speed reduction motor 1:15)

Inverter (KW):7.5

Speed(m/min):0-200

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 7

9

The 2nd extension fitting one set

5 roller size(mm):215×220

Material :Stainless steel hard abrasion

Move mode:6 strap double chains (Motor DG global; Gear speed reduction motor1:15)

Inverter (KW):11

Speed(m/min):0-200

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 8

10

One set of embossing unit

Embossing Roller size(mm):2-155.5×100

(Gear speed reduction motor1:10)

Inverter(KW):2.2

Embossing Mode:Gear revolving

Speeding limit(m/min):0-200

Embossing Wheel Material:SKD-11

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 9

11

Formalization Oven one set

Oven size(mm):2600×400×530

Material:SUS202

Fan(kw) :2.2

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 10

12

The 2nd Haul-off One set

5 roller size(mm):215×220

Material :Stainless steel hard abrasion

(Gear speed reduction motor1:10)

Inverter (KW):3.7

Speed(m/min):0-200

 Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 11

13

One set coiler

Torque Motor(with speed inverter:100N.m (grade 4) Torque motor(set):4

Roller quantity(pc):4

Smart Meter Device(set):2

Paper core inner Diameter(MM): 406



14

Additional Remarks

(1)Voltage:3 phase 380V/ 50Hz;

(2)FS export bearing;

(3)Speed reduction motor is from Taiwan Chengbang

(4)Inverter is from SZ Yingweiteng

(5)Temperature controller Omron; switch, contactor and Electric relay use  Brand Schneider.

(6)Screw,Barrel,gear tank use good quality items from zhejiang

(7)Energy saved motor

(8)All the bearing heat treated and find machining.

(9)Main body(MM):100*100*4.0T (thick enough, international standard)

15

Others

Provide the whole production lines operation manual: drawing file, photos, production procedures instruction; Wiring Diagrams etc.

Provide equipment material list on delivery.


Item. No YXZX-PET90A
Screw  single screw(90mm) output two lines
Suitable resin PET 100% recycle material or new material
Line speed 238m/min(2lines)
Output 150-200kg/h
Total power 230kw
power supply 380V 3P 50Hz
Strap band width 5mm-32mm
Strap band thickness 0.4mm-1.5mm
Delivery time 50 days
PS: products pruduce by our machine suitable for both machine packaging and hand pakaging. the same material use our machine can prouduce more more length and higher tension straps. PS:machine can be customized.





Company Information

 YONG XING ZHAN XING Technology CO.Ltd. i s a professional company specialized in desinging and manufactureing plastic PP/PET packaging straps and PP/PET packaging strap machine line.

We developed many kinds of plastic extrusion equipment and PP/PET packaging strap. Meanwhile, we introuduced and absorbed the advanced plastic processing  technology, which can provide the technology and machinery one-stop service.



Advanteges



  • Rich Experience

We have the most professional team for designing and manufacturing machine and products. All technician have more than 5years experience on designing and testing. Our machines apply the newest technology in China.

  • Best Quality

We use the best quality material and world famous electricity parts to ensure high quality and good performance

  • Best Service

We will test all machine before shipment and supply all electricity and water connection drawing to customers. We have professional technicians to service customiers free installation and training customer's workers oversea.

Certifications

Automatic Carton Box PET Belt PET Strap Extrusion Machine 	0.4mm-1.5mm 12

FAQ

 Q; What your payment term?

A: T/T.  30% of tatal amount paid by T/T as advance. Then the seller strat production . After the machine is finished, buyer come to our factory to test the machine , and then pay the 70% balance by T/T at sight. Then the seller ship the machine .



Q: How long is the delivery?

A: 50 days after payment.



Q: Do you arrang the shipment?

A: For FOB, we will coordinate with your forward for shipment.



Q:What your after-sale service?

A:We provide free installation service and our engineer will train your worker how to use the machine well. We will realize gurantee of repair,repalcement and refund of substandard products within one year after the machine leaves factory. Fitting machine will be supplied at preferential price after one year.



Q:What’s your warranty?

A: we will realize guarantee of repair, replacement and refund of substandard products within one year after the machine arrived in customer’s factory(expect destory by buyer’s wrong operation). We guarantee the material of screw and barrel(guarantee without normal abrasion). And half a year for electric parts. Fitting of the machine will supply at preferential price after one year.
