150-200 KG/H PET Strap Making Machine 0.4mm-1.5mm
| Brand Name: | YONGXINGZHANXING |
| MOQ: | 1 sets |
| Price: | $108,000.00 - $123,000.00/sets, negotiable |
| Supply Ability: | 8 Set/Sets per Month |
Delivery Time: 50 days
200 KG/H pet strap making machine
,150 KG/H pet strap making machine
,1.5mm pet strap line
Automatic Pet Strapping Machine 4in1 Collapsible Travel Folding Pet Feeding Strap
Equipment List
|
Style No.:YXZXPET-100A |
Suitable Material:100%PET bottle flak ( Material size about10-16MM) Strapping Pcs:3pcs Strapping Size: Width/Thickness(mm)9-32/0.4-1.5 Including 6pcs moulds,2pcs strap output: Production Capacity: 9600-12000 kg/24h Power consumption: 170-180KW/H |
||
|
No. |
Content |
Detailed Parameter |
Reference Pictures |
|
1 |
Pre-production warm-up part |
One set of Lying-style raw material warm-up/drying machine (1.5Tons,Dongguan) One set of auto raw material feeding machine (2.5M)
|
 |
|
2 |
Pre-production raw-material storage part |
One set of 2 tons stand style raw-material storage machine(Dongguan) |
|
|
3 |

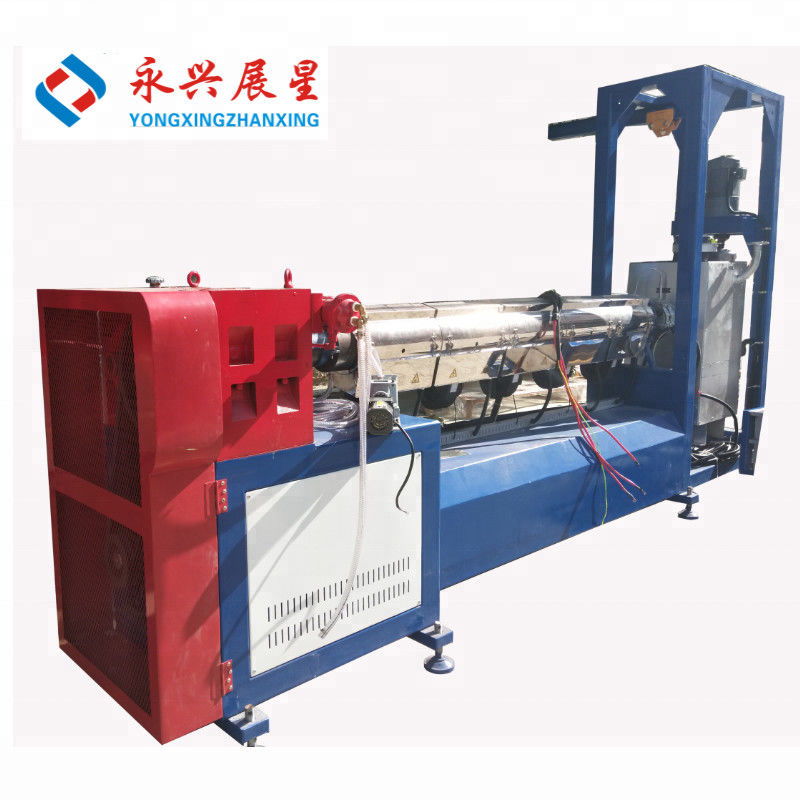

One set of Extruder Solid heating device 8 zones, |
1. Screw Material (CrMoAL):38 Barrel Internal Diameter (mm):100 2. Reductor : YXZX-225 3. Motor/Inverter(kw):37/37 (DG Global &SZ YWT) 4. Precise automatic feeder (100CC) to keep output stable. 5. Special chemical fiber net changer 6. Material drying container: 100KG |
|
|
4 |

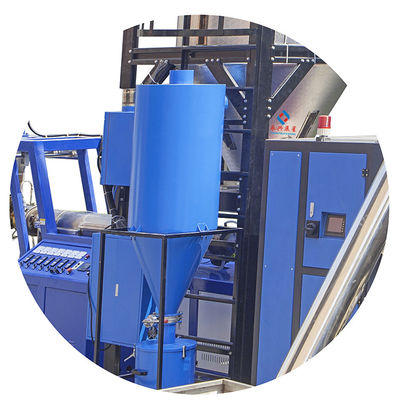

Dehumidifying dryer one set |
1. One set of PET crystallization machine ( capacity 1000kgs/set) 2. Auto-feeder: corkscrew spin feeder ( 2sets, 4KW/Set) 3. Pre-Dry and Dehumidifying dryer one set (Model: GSG-1000, Capacity 1000kgs, Gross power 75KW/H) |
|
|
5 |
Stainless Steel cooling tank one set |
Size(mm):3000×350×600 Size:SUS304; thickness:2.0T Water lever adjustable |
|
|
6 |

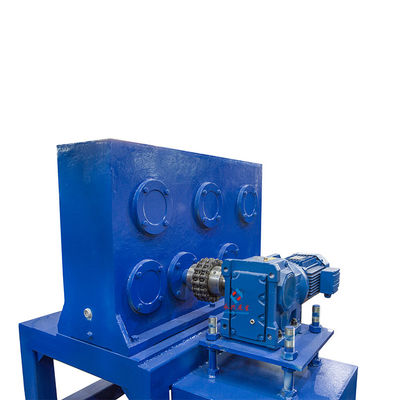

The first Haul-off one set |
5 roller size(mm):215×220 Material :Stainless steel hard abrasion Move mode:6 strap double chains (grear speed reduction motor) Inverter (KW):3.7 Speed(m/min):0-20 Speed Ratio:1:60 |
|
|
7 |
One set extend oven |
Oven size(mm):4000×400×530 Material:SUS202,Thickness:1.5T Heating method : Circulate wind(save energy) Fan(kw):0.75 |
|
|
8 |
The1st extension fitting one set |
5 roller size(mm):215×220 Material :Stainless steel hard abrasion Move mode: double chains (gear speed reduction motor 1:15) Inverter (KW):7.5 Speed(m/min):0-200 |
|
|
9 |
The 2nd extension fitting one set |
5 roller size(mm):215×220 Material :Stainless steel hard abrasion Move mode:6 strap double chains (Motor DG global; Gear speed reduction motor1:15) Inverter (KW):11 Speed(m/min):0-200 |
|
|
10 |
One set of embossing unit |
Embossing Roller size(mm):2-155.5×100 (Gear speed reduction motor1:10) Inverter(KW):2.2 Embossing Mode:Gear revolving Speeding limit(m/min):0-200 Embossing Wheel Material:SKD-11 |
|
|
11 |
Formalization Oven one set |
Oven size(mm):2600×400×530 Material:SUS202 Fan(kw) :2.2 |
|
|
12 |
The 2nd Haul-off One set |
5 roller size(mm):215×220 Material :Stainless steel hard abrasion (Gear speed reduction motor1:10) Inverter (KW):3.7 Speed(m/min):0-200 |
|
|
13 |
One set coiler |
Torque Motor(with speed inverter:100N.m (grade 4) Torque motor(set):4 Roller quantity(pc):4 Smart Meter Device(set):2 Paper core inner Diameter(MM): 406 |
|
|
14 |
Additional Remarks |
(1)Voltage:3 phase 380V/ 50Hz; (2)FS export bearing; (3)Speed reduction motor is from Taiwan Chengbang (4)Inverter is from SZ Yingweiteng (5)Temperature controller Omron; switch, contactor and Electric relay use Brand Schneider. (6)Screw,Barrel,gear tank use good quality items from zhejiang (7)Energy saved motor (8)All the bearing heat treated and find machining. (9)Main body(MM):100*100*4.0T (thick enough, international standard) |
|
|
15 |
Others |
Provide the whole production line’s operation manual: drawing file, photos, production procedures instruction; Wiring Diagrams etc. Provide equipment material list on delivery. |
|
| Item. No | YXZX-PET90A |
| Screw | single screw(90mm) output two lines |
| Suitable resin | PET 100% recycle material or new material |
| Line speed | 238m/min(2lines) |
| Output | 150-200kg/h |
| Total power | 230kw |
| power supply | 380V 3P 50Hz |
| Strap band width | 5mm-32mm |
| Strap band thickness | 0.4mm-1.5mm |
| Delivery time | 50 days |
| PS: products pruduce by our machine suitable for both machine packaging and hand pakaging. the same material use our machine can prouduce more more length and higher tension straps. | PS:machine can be customized. |
YONG XING ZHAN XING Technology CO.Ltd. i s a professional company specialized in desinging and manufactureing plastic PP/PET packaging straps and PP/PET packaging strap machine line.
We developed many kinds of plastic extrusion equipment and PP/PET packaging strap. Meanwhile, we introuduced and absorbed the advanced plastic processing technology, which can provide the technology and machinery one-stop service.
Advanteges
- Rich Experience
We have the most professional team for designing and manufacturing machine and products. All technician have more than 5years experience on designing and testing. Our machines apply the newest technology in China.
- Best Quality
We use the best quality material and world famous electricity parts to ensure high quality and good performance
- Best Service
We will test all machine before shipment and supply all electricity and water connection drawing to customers. We have professional technicians to service customiers free installation and training customer's workers oversea.
Q; What your payment term?
A: T/T. 30% of tatal amount paid by T/T as advance. Then the seller strat production . After the machine is finished, buyer come to our factory to test the machine , and then pay the 70% balance by T/T at sight. Then the seller ship the machine .
Q: How long is the delivery?
A: 50 days after payment.
Q: Do you arrang the shipment?
A: For FOB, we will coordinate with your forward for shipment.
Q:What your after-sale service?
A:We provide free installation service and our engineer will train your worker how to use the machine well. We will realize gurantee of repair,repalcement and refund of substandard products within one year after the machine leaves factory. Fitting machine will be supplied at preferential price after one year.
Q:What’s your warranty?
A: we will realize guarantee of repair, replacement and refund of substandard products within one year after the machine arrived in customer’s factory(expect destory by buyer’s wrong operation). We guarantee the material of screw and barrel(guarantee without normal abrasion). And half a year for electric parts. Fitting of the machine will supply at preferential price after one year.
