One set of PP strap machine PP strap belt Applications of pp strap
PP Double Screw 2 Strapping Band Clearly Pp Straps Extrusion Production Line

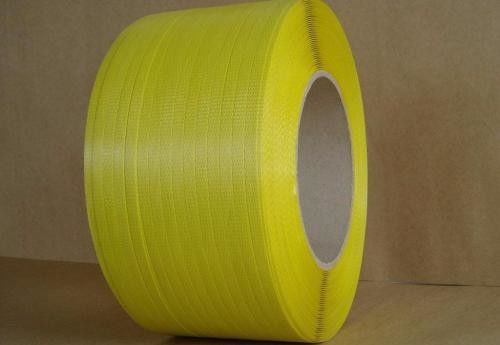

PP packing belt manufacturing machine mainly produces PP packing belt/pp strap. PP packing belt/PP strap is mainly used in packaging, including wood packing, steel packaging, glass packaging, cotton packing, ceramic packaging, building materials packaging, paper packaging and chemical fiber packaging. Besides, it also use for the replacement of steel strap heavier objects.
One set of PP strap machine PP strap belt Applications of pp strap
We sell a complete set of PP strap making machines or part of the machine.
The equipment detailed description as follows:
|
Main technical parameter of PP Strap Making Machine
|
|
|
|
|||
|
Model number
|
|
YXZX-PP 90
|
|
|||
|
Raw material
|
|
PP /100% recycle material or new material
|
|
|||
|
Line speed
|
|
400-450m/min(include 2 lines)
|
|
|||
|
Output
|
|
80-100Kg/h(output 2 lines)
|
|
|||
|
Total power
|
|
95KW
|
|
|||
|
Power supply
|
|
380V 3P 50Hz
|
|
|||
|
Power consumption
|
|
30-35kw/h
|
|
|||
|
Delivery detail
|
|
<35 days
|
|
|||
|
strap band width
|
|
5-19 mm ±0.25
|
|
|||
|
Strap band thickness
|
|
0.4-1.2 mm±0.025
|
|
|||
|
Note
|
|
The same material our machine can produce more length and higher tension strapping.
|
|
|||
1) Potentiometer control system is making the operation more simple with lower requirements.
2) The machine can be stretched much longer distances.
3) High-precision high-quality screw, a large amount of extrusion, extrusion pressure constant.
4) The third stretching unit organically combine with the embossing mechanism with advanced structure.
5) Using self-circulation air heating system, energy saving and environmental protection.
|
item
|
value
|
|
Application
|
Granules
|
|
Plastic Processed
|
PP
|
|
Condition
|
New
|
|
Screw Design
|
Double-screw
|
|
|
Counter-rotating conical Twin-screw
|
|
Screw Material
|
38CrMoALA
|
|
Screw diameter (mm)
|
Other
|
|
Screw L/D Ratio
|
Unapplicable
|
|
Screw Speed (rpm)
|
60rpm
|
|
Showroom Location
|
Egypt, United States, Italy, Viet Nam, Philippines, Brazil, Peru, Pakistan, India, Russia
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Yongxing Zhanxing
|
|
Voltage
|
380V 50HZ 3Phase(Customized)
|
|
Dimension(L*W*H)
|
L30000*W1500*H3500
|
|
Weight
|
8KG
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Multifunctional
|
|
Applicable Industries
|
Manufacturing Plant
|
|
Marketing Type
|
Ordinary Product
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Warranty of core components
|
3 months
|
|
Core Components
|
Pump, Gear, PLC, Engine, Gearbox, Screw
|
|
|
|
|
|
|
|
|
|
|
Automatic Grade
|
Fully Automatic
|
|
Certification
|
ISO9001:2008
|
|
Power
|
60KW
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
|
|
|
|
|
|
|
|
Screw material (CrMoAIA):38
Screw diameter: 90mm
Hardened tooth-surface reducer model: ZLYJ200
Motor/ Inverter(kw):22/22
Heating power: 35kw
Automatic feeder: program self-suction(1.5HP)
Automatic dryer(kg): 100
Size of five roller wheels: D250×H220
Material: wear-resistance aluminum-alloy stainless steel
Transmission: 6 double chains
Frequency conversion motor/ Inverter(KW): 2.2
Speed range(m/min): 0-30
Size of five roller wheels: D250×H220
Material: wear-resistance aluminum-alloy stainless steel
Transmission: Synchronized belt
Frequency conversion motor/ Inverter(KW): 3.7
Speed range(m/min): 0-300
Size of three roller wheels: D250×H220
Material: wear-resistance aluminum-alloy stainless steel
Frequency conversion motor/ Inverter(KW): 2.2
Speed range(m/min): 0-300
Extended oven(mm): 4000×400×600
Material: SUS202
Heating style: wind circulation
Fan (kw): 0.75
Heater power:18KW

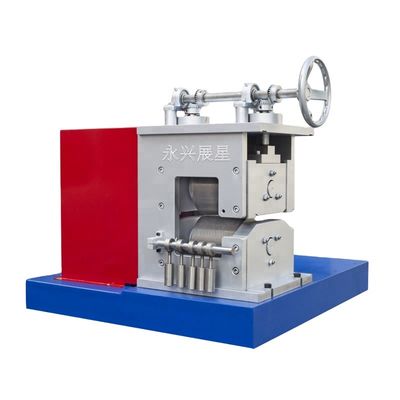

Embossing roller(mm):2-∮155.5×100
Frequency conversion motor/Inverter(KW): 2.2
Embossing style: gear turning
Speed range(m/min): 0-300
Embossing roller material: SKD-11
Inker/Inkwriter $1100
Can be customized logo and words
Torque motor(with governor):60N﹒m(4 stages)
Torque motor(set):4
Winding number(pics): 4
Meter recorder (set):2
Winding paper size: 200*180mm
(1)Voltage:3 phase 380V/50Hz;
(2)FS export bearing;
(3)Speed reduction motor is from Chinese Brand Taiwan Chengbang;
(4)Inverter is from Shenzhen INVT;
(5)Temperature controller is from Omron Brand; switch, contactor and Electric relay us Brand Schneider.
(6)Screw, Barrel, gear tank use good quality items from Zhejiang Province.
(7)Energy saved motor. The host horse machine adopts Siemens;
(8)All shafts are heat treated, straightened and grinded with good concentricity and durability.
(9)Main body(MM):100*100*4.0T (thick enough, international standard)
Others
We provide the entire production line of operation manuals, including drawings, photos, production procedures and wiring diagrams, etc.
At delivery, we provide equipment bill of materials.
Packaging Details: Before dilivery, our workers will carefully pack the whole set machine to promise safely arriving to customer's workshop. Cling film packing/ Buble film packing.
Delivery Time: 30 working days
Yong Xing Zhan Xing Tecnology CO.LTD. is a manufactory over 10 years, specializing in desingning and manufacturing plastic PP/PET packaging strap and PP/PET pakaging strap making machine with high quality and pretty competitive price.
Why choose us
We have developed many kinds of plastic extrusion equipment and PP/PET packaging strap. Meanwhile, we introduce and absorbe the advavnced plastic processing technology, which can provide the technology and machinery one-stop service.
We have adopted ISO9001-2016 quality management system and our company has own PP/PET packing belt production workshop.
We sincerely invite all of you to our factory to communicate the production technology. If you buy our machines, we provide one year's warranty and lifelong maintenance for equipment.
RICH EXPERIENCE
We have the most professional team for designing and manufacturing machine. All technicians have more than 5 year’s experiences on designing and testing. Our machines apply the newest tachnology in the world.
BEST QUALITY
We use the best quality material and advance electricity parts to ensure high quality and good performance. All our products are come with high quality and strong tension.All machines have CE certification.
BEST SERVICE
We will test all machines before shipment and supply all electricity and water connection drawing to customer. We have experienced technicians to install machine and train workers for customer. And we provide customized service.
Q: Are you factory?
A: yes, we are .Our detail address is in the Shenzhen Guangdong.
Q: What about the delivery?
A: Shipped in 30 days after payment.
Q: What's your product range?
A:We specialized in Pet strap/PP strap, and Pet strap production line/PP strap production line for 8 years . All of our products can be customized.
Q: What's your packaging? Shipping? What about your payment terms?
A: Packaging: according to our normal packing or according to customer request
Shipping: by sea /Ground transportation or according to customer request
Payment: Price<=1000USD, 100% in advance. Price>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What about your after-service?
A: we provide one year’ warranty and lifelong maintenance for equipment.
